Blog Post

7th December 2016

A testing job this week involved multiple topology errors on a Hardinge Bridgeport 828D machine. After the drive and cables had been tested and proven and a suspect encoder had been replaced, we were called to assist in the diagnosis of the fault.

After investigation, we found the SMI module on the spindle motor to be faulty and not communicating with the drive.

After replacing the SMI module, downloading SMI data and re-teaching spindle orientation (M19 position), the machine was returned to production and the owner was very happy!

At Control CNC Services Ltd., we offer a cost-effective CNC machine prevention maintenance service to help keep your business up and running.

Contact us using the red button at the top of this page for repairs, installations and parts.

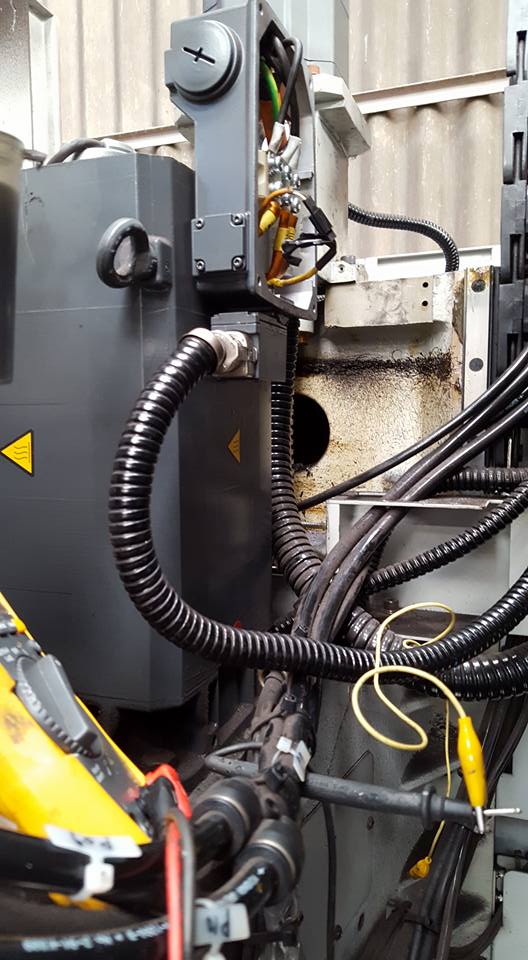

Hardinge Bridgeport 828D

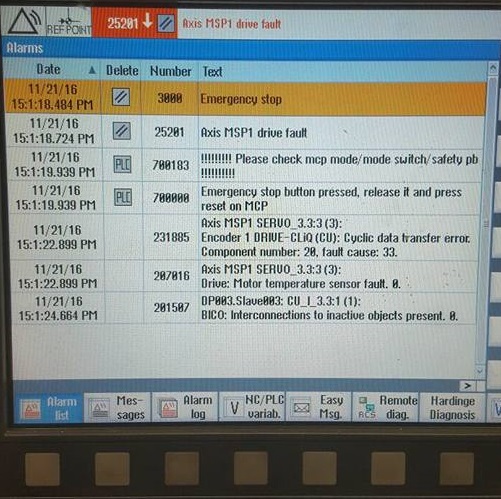

Downloading SMI data

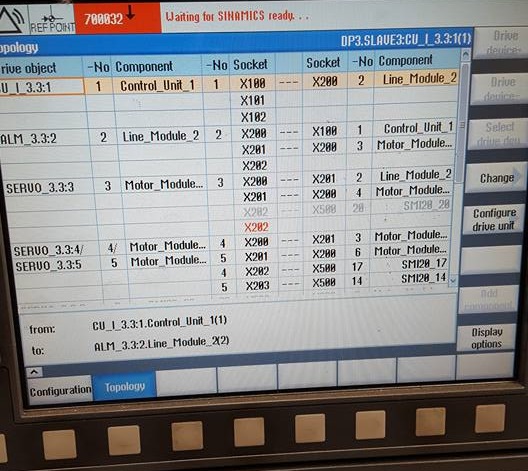

Downloading SMI data

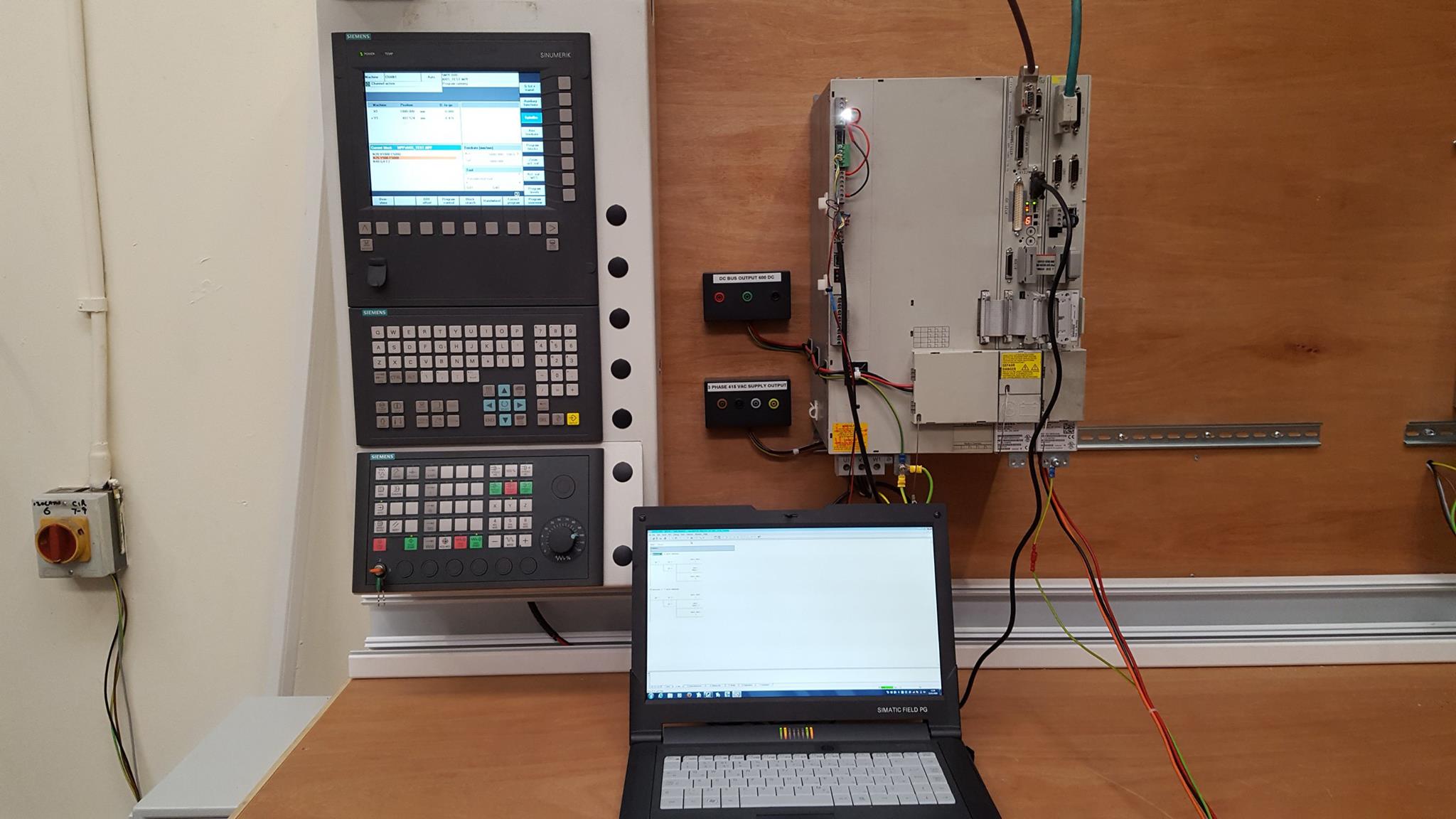

An 840D Powerline Rig with 611 Drives

Previous Post

24th November 2016

This completed 840D Powerline rig with 611D drives is capable of running multiple axis' and helps to diagnose and test many hardware types.

An 840D Powerline Rig with 611 Drives

Next Post

4th January 2017

This is what happens when a Deublin valve seizes while the spindle is cutting at 15000 rpm!
